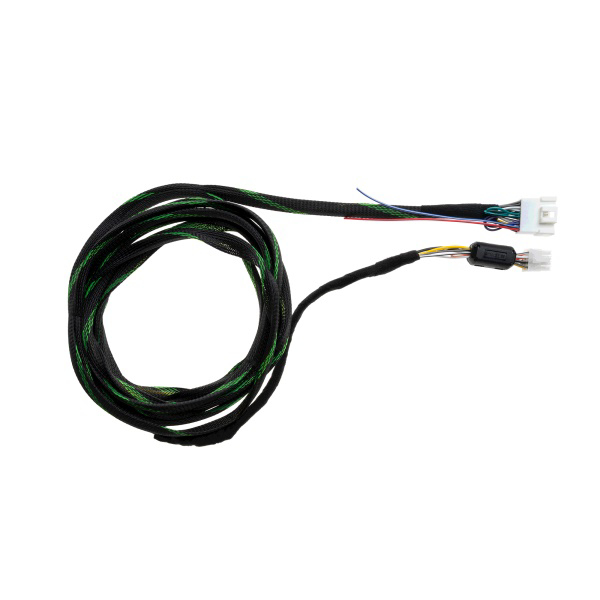

„AXTON ATS-ISOATB“ – praktiškas sprendimas, skirtas paprastesniam suderinamo „AXTON“ aktyviojo zemuju dazniu garsiakalbio prijungimui automobilyje. Kabelis naudojamas kartu su konkreciam automobiliui pritaikytu „AXTON SPECIFIC“ adapterio kabeliu.

Pagrindines savybes:

Skirtas „AXTON ATB20A“, „ATB20RXF“ ir „ATB120QBA“ aktyviesiems zemuju dazniu garsiakalbiams.
Naudojamas kartu su automobiliui tinkamu „AXTON SPECIFIC“ adapterio kabeliu.
Kabelio ilgis – 5 m.
Apsaugotas patvaria nailonine zarna.
Garso signalas paimamas nuo dvieju priekiniu automobilio garsiakalbiu.
Kartu su mazdaug 1,5 m ilgio T formos adapterio laidynu kabelio ilgio pakanka zemuju dazniu garsiakalbiui montuoti bagazineje.
Priklausomai nuo automobilio ir prijungimo budo, atskiro maitinimo laido tiesiai nuo akumuliatoriaus gali neprireikti.

Svarbi informacija apie suderinamuma

Prieš montuojant butina patikrinti, ar automobiliui tinka reikiamas „AXTON SPECIFIC“ adapterio kabelis ir ar pasirinktas aktyvusis zemuju dazniu garsiakalbis yra suderinamas.

Negalima tuo paciu metu prie vieno T formos kabelio prijungti „AXTON DSP“ stiprintuvo ir „ATB“ zemuju dazniu garsiakalbio.

Pastaba del kai kuriu VAG grupes automobiliu

Kai kuriuose „Seat“, „Škoda“, „Audi“ ir „Volkswagen“ automobiliuose su 6 kanalu VAG radijo sistema gali reiketi sukeisti priekinio ir galinio garso signalu iejimus, nes priekiniai išejimai gali perduoti tik vidutinius ir aukštus daznius.

Tokiais atvejais 52 kontaktu „Quadlock“ jungtyje zemuju dazniu signalas gali buti perduodamas per šiuos kontaktus:

Priekinis dešinysis kanalas: 9 (+) ir 13 (−).
Priekinis kairysis kanalas: 10 (+) ir 14 (−).

Naujesnese „ATS-ISOATB“ kabelio versijose naudojamos „Molex“ jungtys, leidziancios tinkamai sukeisti priekinio ir galinio kanalu signalus.

Prieš uzsakant rekomenduojama patikrinti automobilio modeli, pagaminimo metus, garso sistemos varianta ir reikiama adapteri.

Automobiliu suderinamumo sarašas

Audi

A1 — 2010–dabar (8X)
A2 — 1999–2005 (8Z)
A3 — 1998–2008 (8L, 8P/8PA)
A4 — 1994–2008 (B5, B6, B7)
A4 — 2012–dabar (nurodytas B8)
A5 — 2007–2016 (8T); 2016–dabar (F5)
A6 — 1994–2005 (4A); 2018–dabar (nurodytas 4G)
A7 — 2010–2018 (4G)
A8 — 1994–2002 (D2/D3)
Q2 — 2016–dabar (GA)
Q3 — 2011–2018 (8U); 2018–dabar (F3)
Q5 — 2008–2016 (8R); 2017–dabar (FY)
TT — 1998–2006 (8N)

BMW

3 Series — 1982–2007 (E30, E36, E46)
5 Series — 1988–2004 (E34, E39)
7 Series — 1986–2001 (E32, E38)
8 Series — 1989–1999 (E31)
X5 — 1999–2009 (E53)
Z3 — 1995–2002 (E36/7, E36/8)

Citroën

Berlingo — 1996–2009; Berlingo II — 2008–2018
C-Crosser — 2007–2013
C-Elysée — 2012–dabar
C1 — 2005–2014 (iskaitant facelift); C1 II — 2014–2022
C2 — 2003–2009 (iskaitant facelift)
C3 Aircross I — 2010–2017; C3 Aircross II — 2017–dabar
C3 I — 2002–2009 (iskaitant facelift); C3 II — 2009–2017; C3 III — 2017–dabar
C3 Picasso — 2009–2017
C3 Pluriel — 2003–2013 (iskaitant facelift)
C4 — 2004–2010; C4 II — 2011–2018 (iskaitant facelift)
C4 Aircross — 2012–2017
C4 Picasso I — 2007–2013; C4 Picasso II — 2013–2022
C5 Aircross — 2017–dabar
C5 I — 2001–2008 (iskaitant facelift); C5 II — 2008–2017; C5 III — 2017–dabar
C6 — 2005–2012
C8 II — 2002–2003; 2009–2015 (facelift)
Cactus — 2014–2018
Elysée — 2003–2013
Jumper II — 2006–2014; Jumper II facelift — 2014–2023 Garso sistemos variantai abiem laikotarpiams: „Citroën Radio / Navigation“ ir „Radio preparation“.
Jumpy I — 1995–2007; Jumpy II — 2007–2023
Nemo — 2007–2015
Spacetourer — 2016–2023
Xsara Picasso — 1999–2010

Dacia

Dokker — 2012–2021 (CD/MP3 R013-X07 arba RV3D-R3030E)
Duster — 2010–2018 (CD/MP3 RV3D-C3000E-P arba navigacija); Duster II — 2018–2024 (CD/MP3 R013-X07 arba navigacija)
Jogger — 2021–dabar (Media Radio Sat / Nav)
Lodgy — 2012–2022 (CD/MP3 R013-X07 arba RV3D-R3030E)
Logan — 2012–2020; 2021–dabar
Sandero — 2012–2018
Spring — 2021–dabar

DS Automobiles

DS3 I — 2010–2016; DS3 II — 2016–2019
DS4 — 2011–2015
DS4 Crossback — 2015–2018
DS4 facelift — 2015–2018
DS5 — 2011–2015; DS5 facelift — 2015–2019
DS5 LS — 2014–2019
DS6 — 2014–2020

Fiat

500 — 2007–2015; 2015–2024 facelift
500L — 2012–2022 (iskaitant facelift)
500X — 2014–dabar
Ducato iki 7 serijos — 2006–2021 („Fiat Radio / Navigation“ arba „Radio preparation“)
Ducato nuo 8 serijos — 2021–dabar („Fiat radio/navigation“ 5, 7 arba 10 coliu ekranas arba „Radio preparation“)
Tipo — 2015–2020 (356); 2020–dabar (356 facelift, 7 arba 10,25 coliu „Fiat Radio/Navigation“)

Ford

B-Max — 2012–2017
C-Max — 2003–2010; 2010–2019 (2 karta)
EcoSport — 2012–2022 (2 karta, iskaitant facelift)
Edge — 2015–dabar (2 karta)
Fiesta — 2005–2008 (6 karta facelift); 2008–2017 (7 karta, iskaitant facelift); 2017–2023 (8 karta)
Focus — 2004–2010 (2 karta); 2010–2018 (3 karta); 2018–dabar (4 karta)
Merger — 2002–2012
Galaxy — 2006–2014; 2015–2023
Ka — 2008–2016 (2 karta); 2014–2021 (3 karta)
Kuga — 2008–2012; 2012–2019 (2 karta); 2019–2024 (3 karta)
Mondeo — 2000–2007 (3 karta); 2007–2014 (4 karta); 2014–2022 (5 karta)
Mustang — 2014–2023 (6 karta)
Ranger — 2006–2012; 2012–2016; 2016–2023
S-Max — 2006–2014; 2015–2023 (2 karta, iskaitant facelift)
Transit — 2006–2013 (6 karta); 2014–2023 (7 karta, iskaitant facelift)
Transit Connect — 2009–2013 facelift; 2013–2023 (2 karta)
Transit Courier — 2014–2023
Transit Custom — 2013–2023
Turneo Custom — 2012–2018; 2018–2023 facelift

Honda

Civic 9 karta — 2011–2017
Civic 10 karta — 2015–2022
Civic 11 karta — 2021–dabar
CR-V 5 karta — 2016–2023
HR-V 3 karta — 2021–dabar
Jazz (GR) — 2020–dabar
ZR-V — 2022–dabar

Hyundai

Accent (RB) — 2010–2017; Accent (YC) — 2017–dabar
Genesis (BH) — 2014–2017; Genesis (DH) — 2014–2017
i10 (IA/BA) — 2013–2019; i10 (AC3/AI3) — 2019–2025
i20 (GB) — 2014–2020: 3,2 colio LCD ekranas, 5 coliu monochrominis ekranas, 7 coliu spalvotas ekranas su navigacija
i20 (BC3) — 2020–dabar: 3,8 colio monochrominis ekranas, 5 coliu monochrominis ekranas arba 7 coliu spalvotas ekranas su navigacija
i30 (GD) — 2011–2016; i30 (PD) — 2017–dabar
i40 (VF) — 2011–2019
Inster (AX EV) — 2021–dabar
IONIQ 5 (NE) — 2021–2024; IONIQ 5 (NE2) — 2024–dabar
IONIQ 6 (CE) — 2022–dabar
ix20 (JC) — 2010–2019
ix35 — 2009–2015
Santa Fe (CM) — 2006–2012; (DM) — 2012–2018; (TM) — 2018–2024; (MX5) — 2024–dabar
Staria (US4) — 2021–dabar
Tucson (TL) — 2015–2018; (TL2) — 2018–2020; (NX4) — 2020–2024; (NX4 facelift) — 2024–dabar
Veloster (FS) — 2011–2018

Kia

Carens — 2006–2013; 2013–2016 (standartine sistema arba navigacija be CD); 2016–2017
Cee'd — 2006–2013; 2012–2016; 2017–dabar 2012–2016 ir 2017–dabar versijoms nurodyta navigacija be CD.
Niro — 2017–dabar (navigacija be CD)
Optima — 2010–2016; 2017–dabar (navigacija be CD)
Picanto — 2011–2016; 2017–dabar
Rio — 2005–2011; 2011–2016; 2017–dabar 2011–2016 ir 2017–dabar versijoms nurodyta navigacija be CD.
Sorento — 2009–2014; 2014–dabar (navigacija be CD)
Soul — 2014–dabar (navigacija be CD)
Sportage — 2004–2010; 2010–2016; 2017–dabar 2010–2016 ir 2017–dabar versijoms nurodyta navigacija be CD.
Stonic — 2017–dabar (navigacija be CD)
Venga — 2009–2013; 2014–dabar (navigacija be CD)

Mazda

Mazda 2 (DE) — 2007–2014; Mazda 2 (DJ) — 2014–2024
Mazda 3 (BK) — 2003–2009; (BL) — 2009–2013; (BM/BN) — 2013–2019; (BP) — 2019–dabar
Mazda 6 (GG) — 2002–2007; (GH) — 2008–2012; (GJ/GL) — 2012–2024
CX-3 — 2015–dabar
CX-5 (KE) — 2011–2017; CX-5 (KF) — 2017–dabar
CX-9 — 2006–2016; 2016–2023
MX-5 (NB/NB-FL) — 1998–2005; (NC) — 2005–2015; (ND) — 2015–dabar

Mercedes-Benz

A-Class (W168) — 1997–2004; (W169) — 2004–2012; (W176) — 2012–2018; (W177) — 2018–dabar
B-Class (W245) — 2005–2011; (W246) — 2011–2018; (W247) — 2018–dabar
C-Class (S203/W203) — 2000–2007; (C204/S204/W204) — 2007–2015; (C205/S205/W205) — 2014–2022
E-Class (W211) — 2002–2009; (S212/W212) — 2009–2016; (W213) — 2016–2020; (W213 facelift) — 2020–2023
E-Class Coupe (C238) — 2017–2023
GLK (X204) — 2008–2015; garso sistemos paketas: „Subwoofer“, „Upgrade“: DSP amplifier
ML (W166) — 2011–2015
R-Class (nurodytas W215) — 2005–2017
S-Class (W221) — 2005–2013; (W222) — 2013–2020
S-Class Coupe Cabriolet (C217) — 2014–2020
SL (R231) — 2012–2020
SLK (R172) — 2011–2020
Sprinter (NCV3) — 2006–2018; (VS30) — 2018–dabar
V-Class (W447 FL) — 2019–2024; (W447 FL2) — 2024–dabar
V-Class Vito (W447) — 2014–2019
Viano Vito (W639) — 2007–2014
X-Class (X470) — 2017–2020

Mitsubishi

ASX — 2010–2019; 2019–2023 facelift
Eclipse Cross — 2018–2021
L200 (5 karta) — 2015–2023
Lancer (8 karta) — 2007–2017
Outlander — 2006–2012 (2 karta); 2012–dabar (3 karta)
Pajero (4 karta) — 2007–2021

Opel

Adam (M-A) — 2012–2019
Astra (J) — 2009–2015; Astra (K) — 2015–2021 (Navi 900 IntelliLink)
Cascada — 2013–2019
Corsa (D) — 2006–2015; Corsa (E) — 2014–2019
Crossland X — 2017–2020; Crossland — 2020–dabar
Grandland X — 2017–2024 (Navi 5.0 IntelliLink)
Insignia A (G09) — 2008–2013 (CD300, CD400, CD500, DVD800, NAVI600, NAVI900); facelift — 2014–2017 (Radio / Navi su DAB, Delphi Silverbox)
Insignia B — 2017–2022
Mokka (A) — 2012–2016; Mokka (A facelift) — 2016–2019
Vivaro A facelift — 2006–2014; Vivaro B — 2014–2019
Zafira B — 2006–2014; Zafira C — 2012–2019

Peugeot

107 — 2005–2014; 108 — 2014–2022
206 — 1998–2009; 206 Plus — 2009–2012
207 — 2006–2015
208 — 2012–2019; 208 II — 2019–2023
301 — 2012–2016
307 — 2001–2005; 307 FL — 2005–2007
308 — 2007–2013; 308 II — 2013–2017
406 — 1996–2005; 407 — 2004–2011
408 — 2010–2014; 408 II — 2014–2018
508 — 2011–2014; 508 II — 2018–2024
607 — 2000–2010
807 — 2002–2014
1007 — 2005–2009
2008 — 2013–2017
3008 — 2009–2016; 3008 II — 2016–2023
4007 — 2007–2012; 4008 — 2012–2017
5008 — 2009–2017; 5008 II — 2017–2024
Expert II — 2007–2016; Expert III — 2016–2023
Partner II — 2008–2018
RCZ — 2010–2015
Traveller — 2016–2023

Porsche

911 (996) — 1997–2006; (997) — 2004–2008; (997 MKII) — 2008–2012; (991) — 2011–2015; (992) — 2020–dabar
718 Boxster (982) — 2016–2024
718 Cayman (982) — 2016–dabar
Boxster (986) — 1996–2004; Boxster (981) — 2012–2016
Cayenne (9PA) — 2002–2007; (9PQA) — 2007–2010; (92A) — 2010–2014; (92A facelift) — 2014–2017
Cayman (987C) — 2005–2013
Panamera (970) — 2009–2013

Renault

Captur — 2013–2017; Captur II — 2019–2024
Clio II — 1998–2005; Clio III — 2005–2012; Clio IV — 2012–2019; Clio V — 2019–2023
Espace III — 1996–2002; Espace IV — 2002–2014 (iskaitant facelift); Espace V — 2015–2023
Kadjar — 2015–2022
Kangoo — 1997–2008; Kangoo II — 2008–2021 (iskaitant facelift)
Koleos — 2007–2013 (iskaitant facelift); Koleos II — 2016–2019
Laguna II — 2001–2007; Laguna III — 2007–2015
Latitude — 2010–2015
Master II — 1997–2010; Master III — 2010–2024 (iskaitant facelift)
Mégane II — 2002–2008; Mégane III — 2008–2016 (iskaitant facelift); Mégane IV — 2016–dabar
Mégane Scenic — 2003–2009; Mégane Scenic III — 2009–2016 (iskaitant facelift); Mégane Scenic IV — 2016–2022
Modus — 2004–2012
Talisman — 2015–2022
Trafic II — 2001–2014; Trafic III — 2014–2019
Twingo — 1993–2007; Twingo II — 2007–2014 (iskaitant facelift); Twingo III — 2014–2024
Vel Satis — 2002–2009 (iskaitant facelift)
Wind — 2010–2013
Zoe — 2014–2024

Seat

Alhambra II — 2010–2022 (iskaitant facelift)
Altea XL — 2006–2015
Arona — 2017–2021; 2021–dabar facelift
Córdoba — 2002–2008
Exeo — 2008–2013
Ibiza (6L) — 2002–2008; (6J/6P) — 2008–2017; (6F) — 2017–dabar
Leon (1M1) — 1999–2006; (1P) — 2005–2012; (5F) — 2012–2020
Mii (AA) — 2012–2021
Toledo (5P) — 2004–2009; Toledo (KG) — 2012–2019

Škoda

Citigo — 2012–2020
Fabia (6X) — 1999–2007; Fabia (5J) — 2007–2014; Fabia (NJ) — 2014–2021
Karoq — 2017–dabar
Kodiaq — 2017–dabar
Octavia (1U) — 1996–2004; (1Z) — 2004–2012; (5E) — 2012–2020; Octavia IV — 2020–dabar
Rapid (NH) — 2011–dabar
Roomster (5J) — 2006–2015
Superb (3U4) — 2001–2008; (3T) — 2008–2015; (3V) — 2015–dabar
Yeti — 2009–2017

Suzuki

Alto (7 karta) — 2008–2015
Baleno (2 karta) — 2015–2022
Celerio — 2014–dabar
Grand Vitara — 1998–2005; 2005–2015
Ignis — 2016–2024
Jimny — 1998–2024
Kizashi — 2009–2016
S-Cross — 2013–2021
Splash — 2008–2014
Swift — 2005–2010; 2010–2017; 2017–2024
SX4 — 2006–2014
Vitara — 2015–dabar

Toyota

4Runner (N210) — 2002–2009; (N280) — 2009–2024
Auris (E150) — 2006–2012; (E180) — 2013–2019; Auris TS (E180) — 2012–2019
Avensis II (T25) — 2003–2008; Avensis III (T27) — 2008–2018
Avensis Verso — 2001–2009
Aygo — 2005–2014; 2014–2021; 2021–dabar
C-HR — 2016–2018; 2018–2024
Camry (5 karta) — 2001–2006; (6 karta) — 2006–2011; (7 karta) — 2011–2019; (8 karta) — 2017–2023
Corolla (9 karta) — 2001–2007; (10 karta) — 2007–2013; (11 karta) — 2013–2018; (12 karta) — 2018–dabar
Corolla Verso — 2004–2009
GR Supra (5 karta) — 2019–dabar
GT86 — 2012–2020 (iskaitant facelift)
Hilux (N25) — 2005–2012
Land Cruiser (J12) — 2002–2009; (J20) — 2009–2021; (J15) — 2009–2024
Mirai — 2014–2020
Prius (MHW20) — 2003–2008; (ZHW30) — 2009–2016; (TNGA) — 2016–2022
Prius+ — 2011–2021
ProAce Verso — 2016–2024
RAV4 (2 karta) — 2000–2006; (3 karta) — 2006–2013; (4 karta) — 2013–2018; (5 karta) — 2019–dabar
Verso (R20) — 2009–2018
Verso S (XP12) — 2010–2015
Yaris (XP9) — 2006–2010; (XP13) — 2010–2020; (XP21) — 2020–dabar
Yaris Verso — 1999–2005

Volkswagen

Amarok — 2010–2016; 2016–2022
Arteon (3G) — 2017–dabar
Beetle (5C) — 2011–2016; Beetle (5C facelift) — 2016–dabar
Bora (1J) — 1998–2005
Caddy (2K) — 2003–2015; Caddy (2K facelift) — 2015–2020 (MIB arba RNS/RCD garso sistema); Caddy V — 2020–dabar
CC (Type 35) — 2012–2016
Crafter — 2006–2016; Crafter II — 2017–dabar
Eos (1F) — 2006–2015
Fox (5Z) — 2005–2011
Golf IV — 1997–2003; Golf V — 2003–2008; Golf VI — 2008–2012; Golf VII — 2012–2020; Golf VIII — 2020–dabar
Golf Plus — 2004–2014
Golf Sportsvan — 2014–dabar
ID.3 — 2019–dabar; ID.4 — 2020–dabar; ID. Buzz — 2022–dabar
Jetta V — 2005–2010; Jetta VI — 2010–dabar
New Beetle — 1997–2010
Passat B5 — 1996–2005; B6 — 2005–2010; B7 — 2010–2014; B8 — 2014–2020; B8 facelift — 2020–dabar
Passat CC — 2008–2012
Phaeton — 2001–2010 (gamma arba RNS/RCD garso sistema)
Polo IV — 2003–2008; Polo V — 2008–2014; Polo VI — 2014–2017; Polo VII — 2017–dabar
Scirocco — 2008–2014; 2014–2017
Sharan — 2000–2010 (gamma arba RNS/RCD garso sistema); Sharan II — 2010–2016; Sharan II facelift — 2016–dabar
T-Roc — 2017–dabar
T5 — 2003–2014; T6 — 2014–2019; T6.1 — 2019–dabar
Taos — 2020–dabar
Tiguan Allspace — 2017–dabar
Tiguan I — 2005–2011; Tiguan I facelift — 2011–2015; Tiguan II — 2016–dabar
Touareg — 2002–2009; Touareg II — 2010–2018; Touareg III — 2018–dabar
Touran I — 2003–2015; Touran II — 2015–dabar
Up! — 2012–2016; Up! facelift — 2016–dabar

Write your own review

Product can be reviewed only after purchasing it
Only registered users can write reviews

Product can be reviewed only after purchasing it
Only registered users can write reviews

Your name *

Your email *

Enquiry *

AXTON ATS-ISOATB – aktyviojo zemuju dazniu garsiakalbio prijungimo kabelis
